ATC CNC Nesting Router For Cabinet Furniture Panel Processing

X6ATC is a fully automatic nesting CNC machine with auto Label & optional gantry robot arm. It is an advanced, industrial manufacturing workcell primarily used in modern panel furniture and cabinetry production. It optimizes sheet materials—like MDF, plywood, or particle board—by nesting cutting paths to maximize yield and minimize waste, executing multiple processes autonomously.

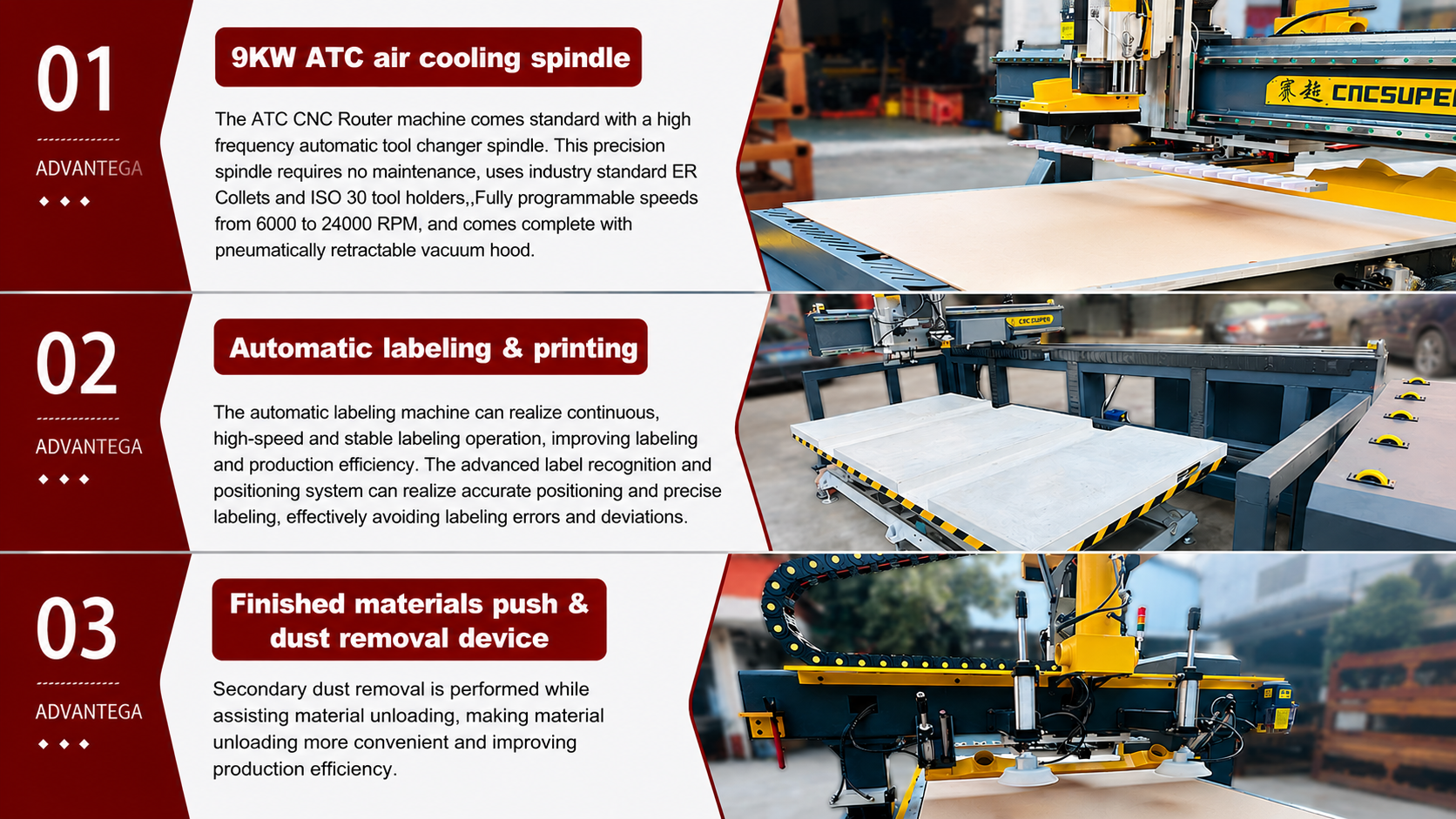

Auto-Labeling: Before cutting starts, an integrated printing head automatically applies barcode labels directly to the raw sheet. These labels contain specific part numbers, dimensions, and edge-banding instructions for downstream assembly.

Auto-Loading: Vacuum suction cups or standard loading mechanisms lift the raw panel from a lift table and precisely position it onto the CNC work table.

Nesting & Machining: The machine utilizes an automatic tool changer (ATC) and multi-spindle drilling heads to drill vertical holes, slot, and cut the panel parts into nested shapes.

Auto-Unloading: A pusher bar sweeps the cut parts and residual dust off the workspace onto an outfeed conveyor belt, keeping the main table clean for the next sheet.

Gantry Robot Arm Integration (Optional Add-on): An overhead gantry robot can act as the ultimate material handler. It is programmed to sort finished panels onto distinct pallets, route them to edge-banding stations, or stack raw inventory without any manual human intervention.

Labor Reduction: The combination of automatic pre-labeling, loading, and a gantry robot arm allows the cell to run in a "lights-out," fully unattended manufacturing mode.

Traceability: Barcode labels applied before cutting prevent sorting errors, eliminating human mix-ups during final assembly or drilling stages.

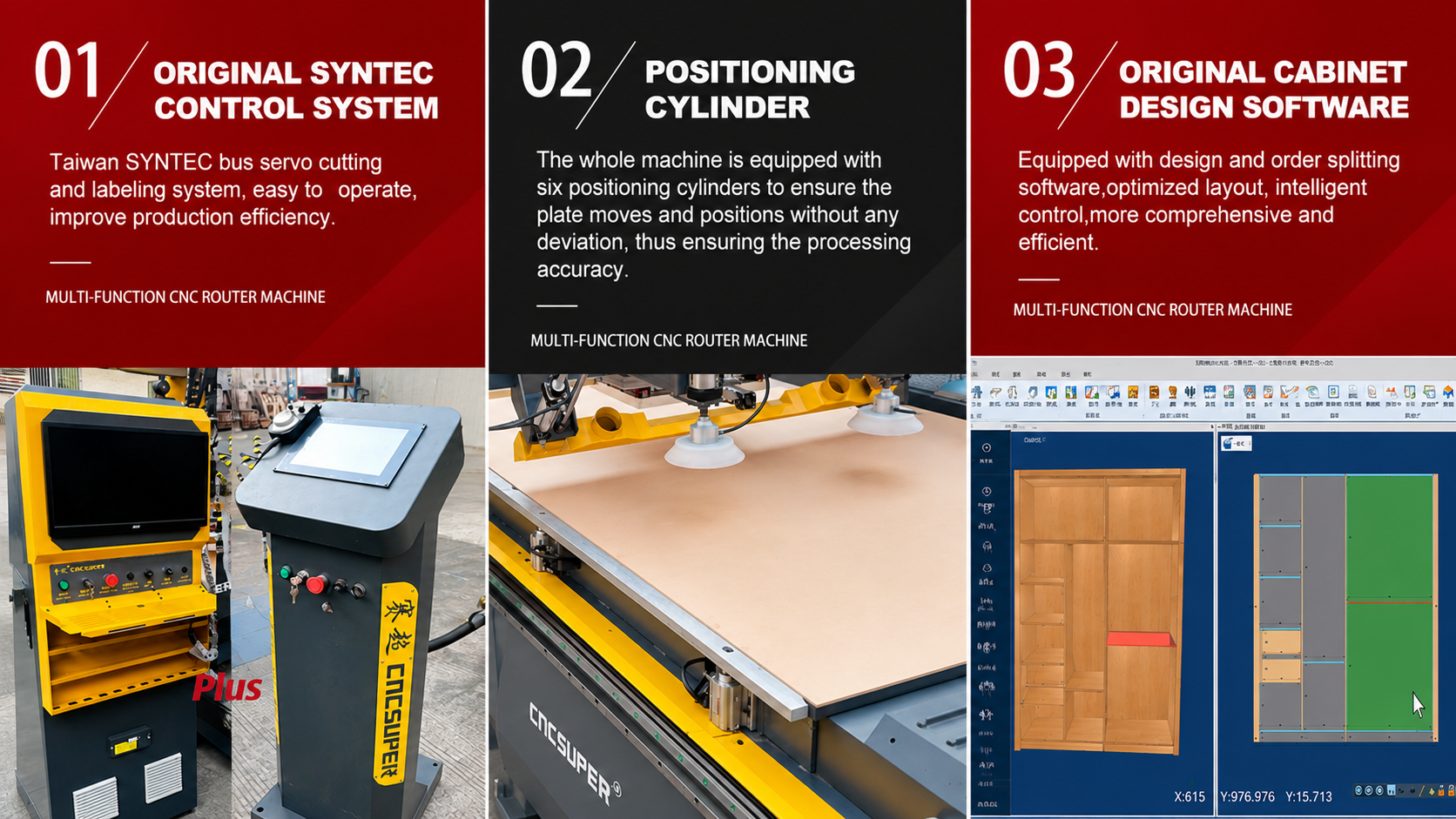

Extreme Material Yield: Advanced nesting software arranges pieces as tightly as possible, boosting raw material utilization and shrinking costs.

Continuous Throughput: Labeling, loading, and unloading happen concurrently with the cutting cycle, maximizing machine uptime

• Cabinetry & Wardrobes: Fabricating kitchen cabinets, bathroom vanities, closets, and modular shelving. The machine cuts panels, drills hinge holes, and pre-labels each piece with edge-banding instructions.
• Panel Furniture Production: Mass-producing flat-pack office furniture, desks, tables, and home entertainment centers.
• Custom Millwork & Joinery: Cutting complex, nested shapes for architectural wall panels, acoustic ceilings, and custom commercial fixtures.
• Store Fixtures & Displays: Manufacturing retail display racks, checkout counters, slatwalls, and exhibition booths.
• Door Manufacturing: Machining interior doors, including cutting to size, routing locksets, and carving decorative patterns.
• Plastic & Composite Fabrication: Nesting and shaping non-ferrous materials like acrylic, PVC, HDPE, and aluminum composite panels (ACM) for signage or industrial use.
